Fundus Camera
Gaush Raymond TNF506 Fundus camera used for taking the image of retina of your eye, it has three image types which are Color, non-mydriatic color, and Red-free. Gaush Raymond TNF507 Fundus camera used for taking the image of retina of your eye, it has four image types which are Color, non-mydriatic color, FFA and Red-free.
Product Detail

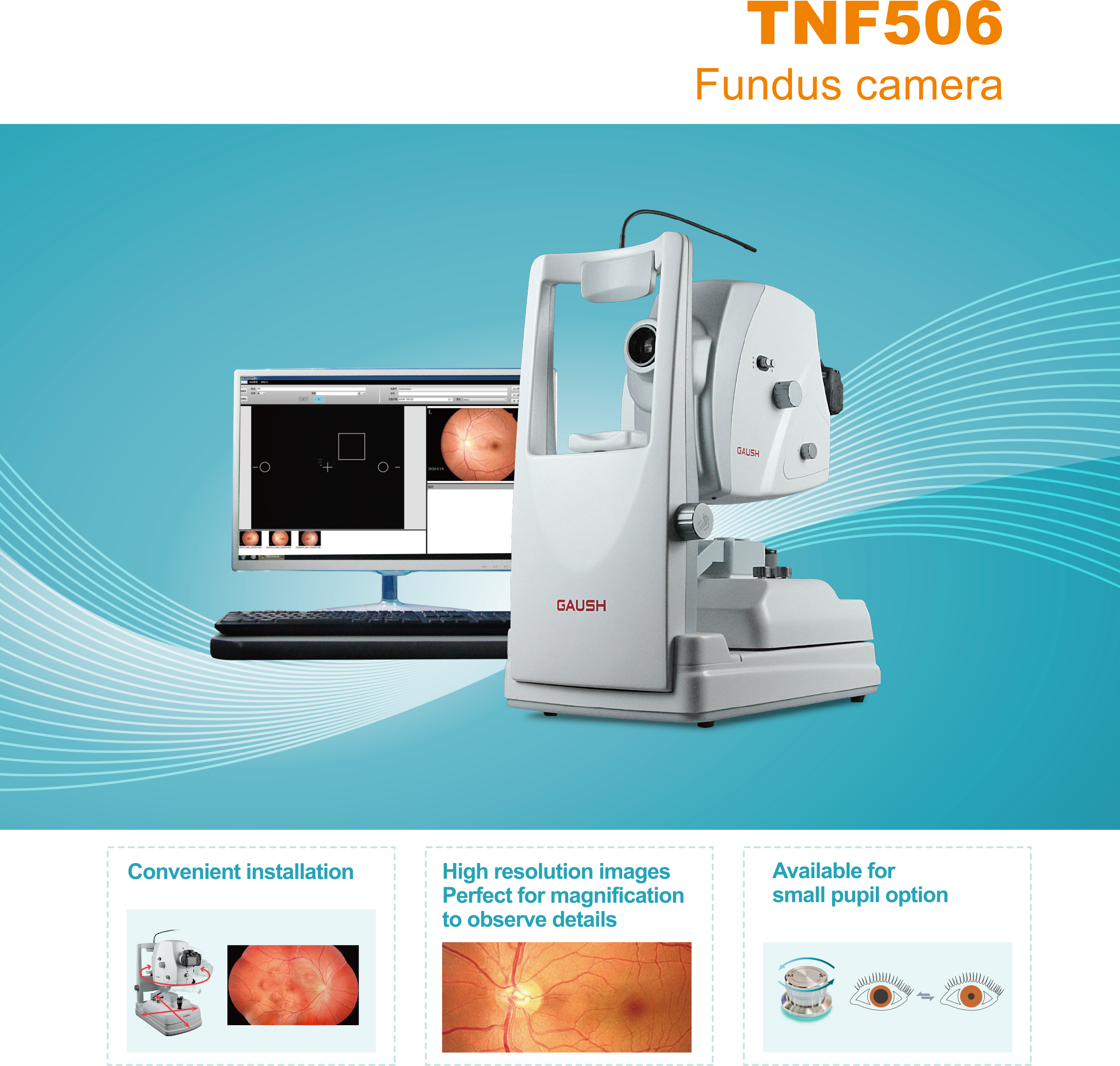

TNF506 Fundus camera
Product Features:
● Professional fundus imaging system● Convenient installation
● High resolution images
● Available for small pupil option
Technnical Parameters:
● Image type: Color,non-mydriatic color,Red Free
● FOV: 45 °
● Minimum pupil diameter: Non-Mydriatic: 3.5 mm (under small pupil mode)
● Diopter compensation: ±15D
● Working distance: 42 mm
● Fixation target: Internal LED Green light+external LED light
● Base movement: Forward and backward : 60mm
● Left and right: 110mm
● Up and down: 30 mm
● Panning range: Left:30° Right:30°
● Tilting range: Up:15° Down:10°
Optional:
SLR imaging system,external Canon Camera with 24MP

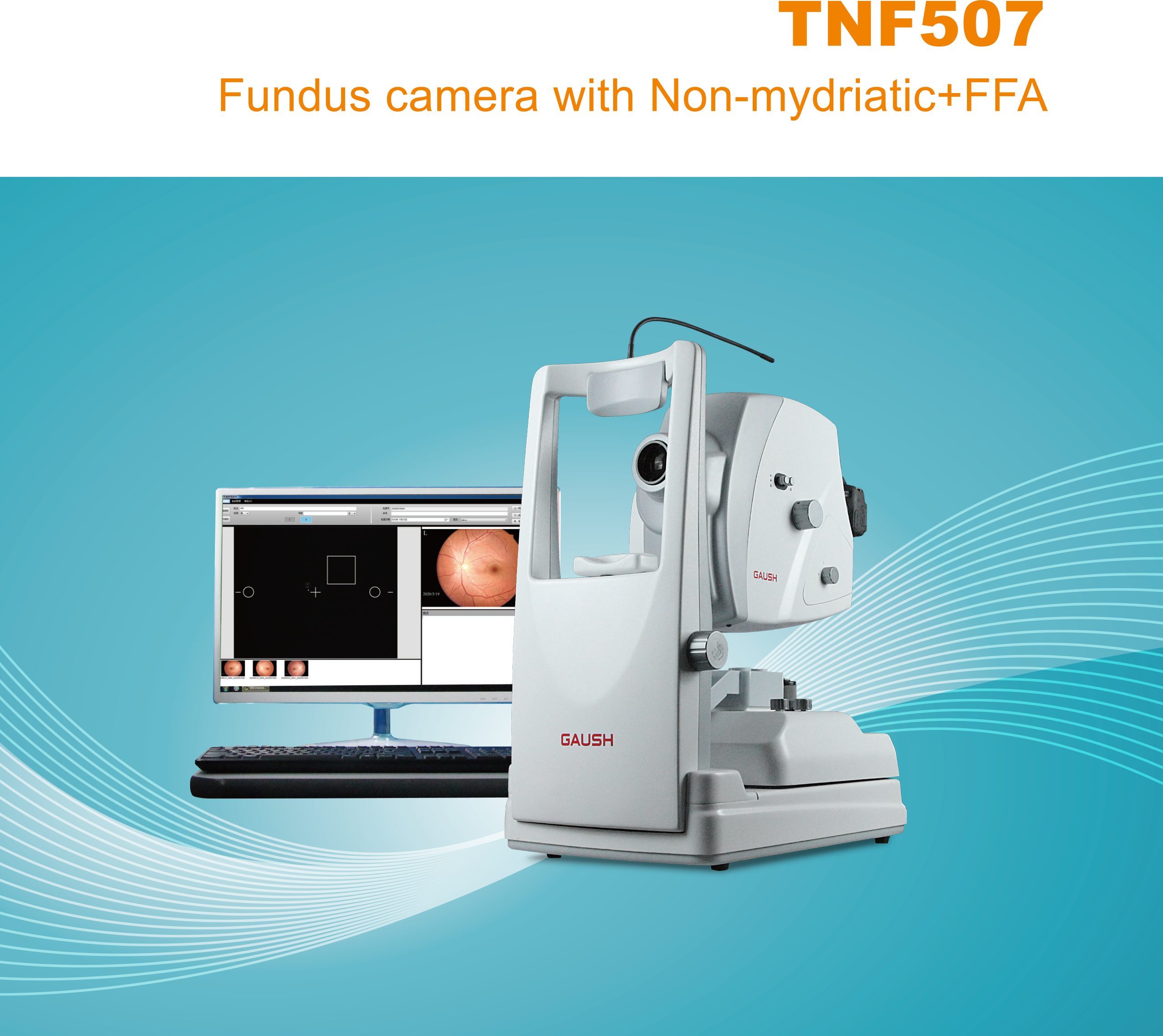

TNF507 Fundus camera
Product Features:
● Fundus camera with Non-mydriatic+FFA
● Perfect for magnification to observe details
● Convenient installation
● Available data port for transmission
Technnical Parameters:
● Image type: Color,non-mydriatic color,FFA, Red Free
● FOV: 50°
● Working distance: 42mm
● Retinal observation mode: LCD
● Minimum pupil diameter: Non-Mydriatic: 3.5 mm (under small pupil mode)
● Fixation target: LED lights
● Diopter compensation: ±15D
● Auxiliary focus mode: 2 light spots for focus
● Focus type: Splitting line focus/ auto focus
● Base movement: Forward and backward : 80mm Left and right:100mm
● Tilting range: Up:15° Down:10°
● Panning range: Left:30° Right:30°
