Slit Lamp MicroScope

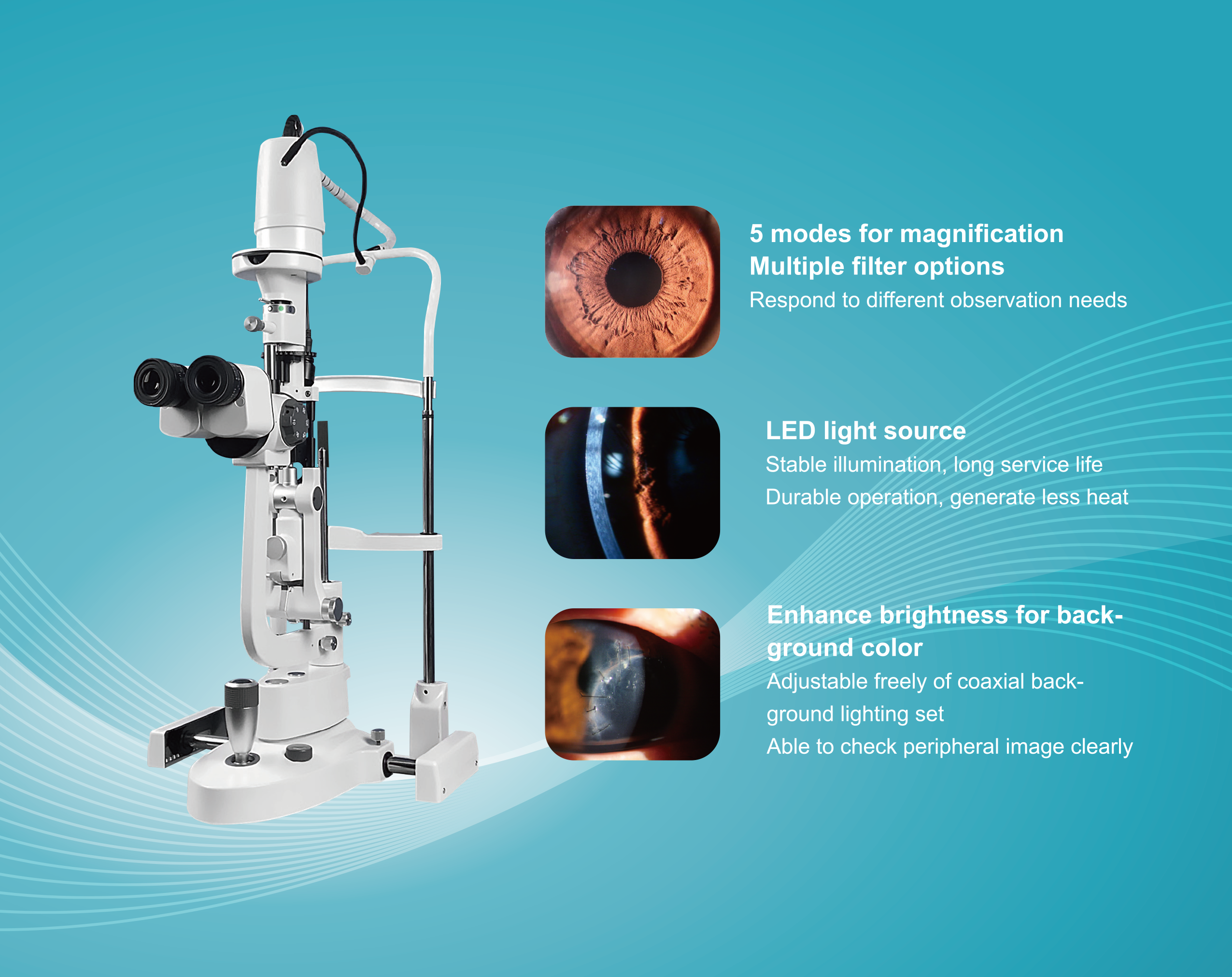

Gaush Raymond TSL-5 Slit Lamp Microscope adopts high-definition Galileo optical system, applies the multi-layer coating technology to eliminate interference from other light sources. It provide ophthalmologists and opticians with clear, bright and perfect anterior segment images.
Product Features:
● 5 modes for magnification
● Multiple filter options
● LED light source
● Enhance brightness for background color
Technical Parameters:
● Microscope type：Galilean parallel type
● Magnification mode：6×、10×、16×、25×、40×
● Eyepiece magnification: 12.5×
● Refractive diopter adjustment:-6D～＋6D
● Slit light adjustment: Continuous adjustment
● Slit width: 0mm～14mm continuously adjustable
● Slit length: 0.2mm,1mm～14mm continuously adjustable
● Slit angle: 0°～180°continuously adjustable
● Slit inclination: 5°、10°、15°、20°
● Filter:Heat absorption filter,dimmer filter,red-free filter,cobalt blue filter
● Aperture diameter:Ф14、Ф10、Ф5、Ф3、Ф2、Ф1、Ф0.2（mm）
● Optional: SLR imaging system，external Canon Camera with 24MP
